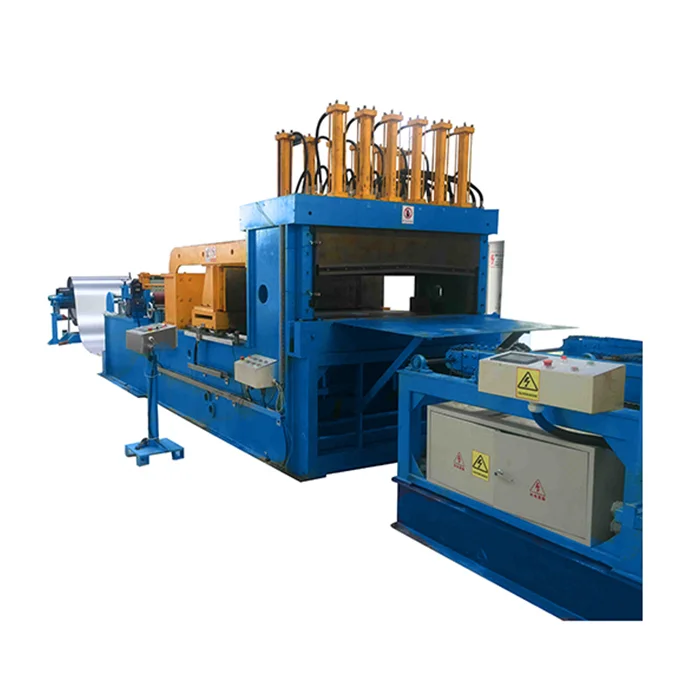

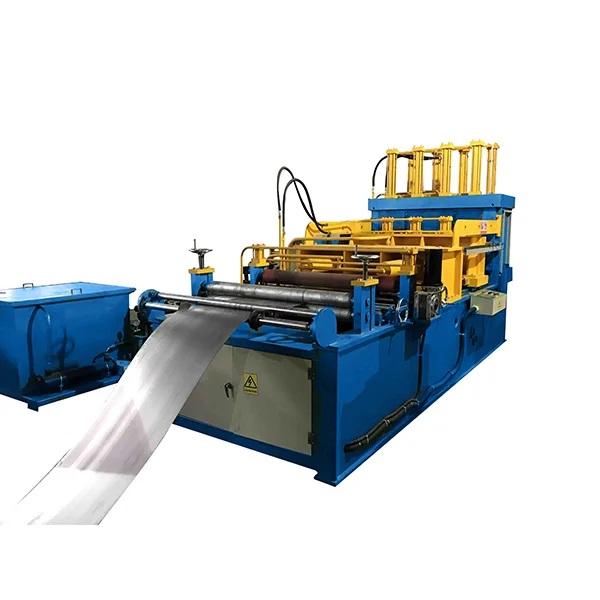

Corrugated Fin Forming Machine

Corrugated fin forming machine is used to produce corrugated plate for transformer wall. The work flow is uncoiling – feeding – folding – pressing – cutting.

Corrugated fin forming machine is used to produce corrugated plate for transformer wall. The work flow is uncoiling – feeding – folding – pressing – cutting.

Description:

The main power of the corrugated fin forming machine is hydraulic.Hydraulic pump motor use Siemens brand motor, and all valves and pump are using Yuken brand products with very high quality.

The feeding and length measuring adopt servo motor and grating scale , with high precision and high automation. No need manual operation to change the sizes. The machine adopts PLC automatic controlling, touch screen operating. The corrugated plates made by this machine are with high quality and high precision.

Features:

Schneider PLC system with touch screen operating

Durable high quality hydraulic power system

Delta servo motor precision feeding system

Enhanced high strength machine structure

Main Technical Data
